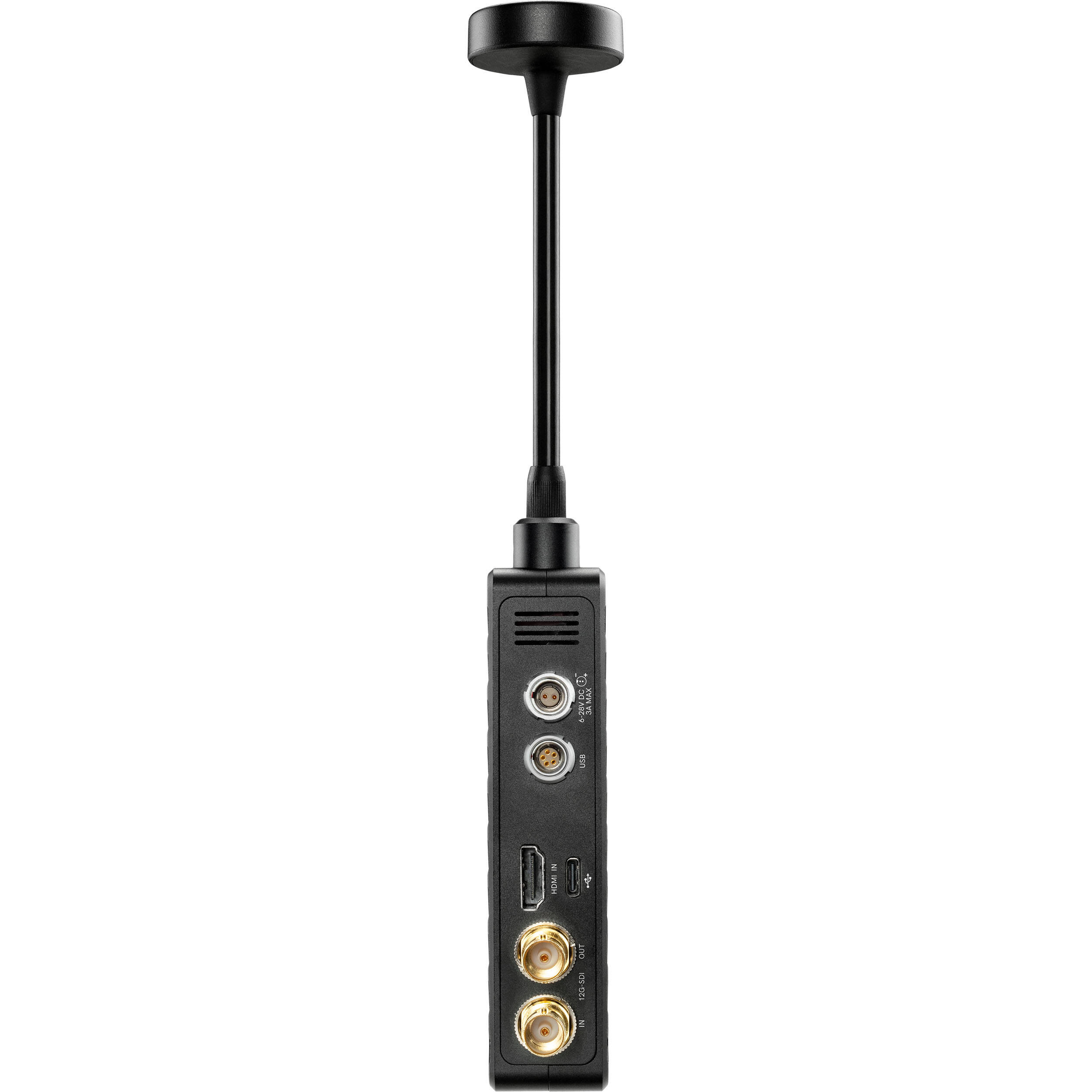

Teradek Bolt 6 XT Max Transmitter Kit (V-Mount)
Day Rate: $ 90.00
Quantity | Add/Remove |
Transmit lossless HD video up to 5000' with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter from Teradek. With a smaller and lighter form factor than the Bolt 4K model, this transmitter can input up to DCI 4K60 video over HDMI or 12G-SDI with 10-bit 4:2:2 HDR support, it features a V-mount battery plate, and this new line supports the 6 GHz wireless band, which is now freely available. It also features a 50% quieter operation with its redesigned cooling system. The transmitter unit provides a powerful signal that can travel up to a 5000' line of sight using its integrated flexible H antennas. It features a bright OLED display, and a 12G-SDI loop output, can be powered using its V-mount battery plate, and supports camera control with optional firmware via its 5-pin USB output.
The transmitter supports the transmission of up to DCI 4K60 video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keep your video clean no matter how many devices are using the wireless spectrum. The Bolt XT MAX system also supports the transmission of timecode and start/stop triggers from the camera.
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
| Photo | Product | Quantity |
|---|---|---|
| Teradek Bolt 6 XT Max Transmitter | 1 |
 | Bolt 6G V Antenna | 4 |
 | Bolt 6G Flexible Mushroom H Antenna | 2 |
 | SafeTap D-Tap to 2-Pin Cable Mutiny I/O Shielded D-Tap Cable | 1 |
 | 2-pin LEMO to 2-pin LEMO Cable | 1 |
 | 12G SDI Cable by Mutiny - 18" to 24" | 1 |
 | HDMI Cable - 1' to 2' | 1 |
| Hot Shoe Mount Adapter | 1 |
 | SmallRig Rosette Articulating Arm - 7" | 1 |
 | Teradek Bolt 6 Color Band | 1 |
| Video I/O | 1x HDMI 1.4b Input 1x 3G-SDI Loop Output |
| Latency | < 0.01 ms |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2) Up to UHD/DCI 4K SDI (10-Bit 4:4:4/4:2:2) Up to UHD/DCI 4K |
| Power Consumption | 20 W |
