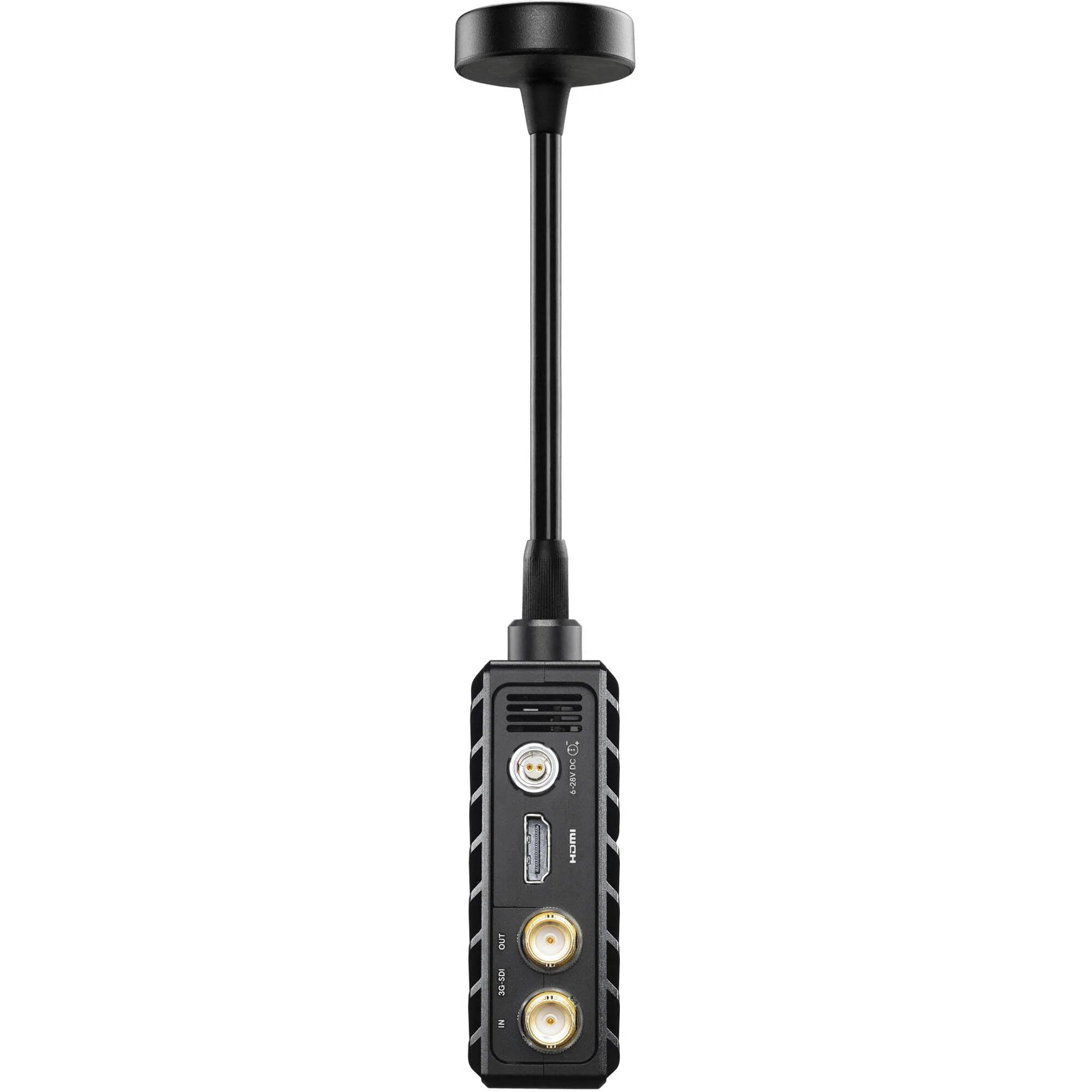

Teradek Bolt 6 LT Max SDI/HDMI Transmitter Kit (V-Mount)
Day Rate: $ 75.00
Quantity | Add/Remove |
Transmit lossless HD video up to 5000' with the Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter from Teradek. The ultralightweight transmitter can input up to UHD 4K30 video over HDMI and 1080p60 over 3G-SDI with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. It transmits visually lossless video to any Bolt 4K series receiver with zero delay. The transmitter unit provides a powerful signal that can travel up to a 5000' line of sight using the optional Bolt 4K panel antenna and up to 3000' with its two included antennas. It also features a bright OLED display and a 3G-SDI loop output that supports video up to 1080p30 resolution.
The transmitter supports the transmission of up to UHD 4K30 video to up to six receivers in the same location, and it can also transmit to an unlimited number of receivers in broadcast mode. It also features improved metadata, range, and compatibility over its predecessors. Other features include HDMI/SDI signal cross-conversion; HDR workflows that support HDR-10, PQ, and HLG standards; LUT control on outputs; and extended metadata, timecode, and start/stop trigger transmission over wireless. Built-in AES-256 encryption and RSA 1024 key pairing protect your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports the desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
| Photo | Product | Quantity |
|---|---|---|
| Teradek Bolt 6 LT Max Transmitter | 1 |
 | Bolt 6G V Antenna | 2 |
 | Bolt 6G Flexible Mushroom H Antenna | 1 |
 | SafeTap D-Tap to 2-Pin Cable Mutiny I/O Shielded D-Tap Cable | 1 |
 | 2-pin LEMO to 2-pin LEMO Cable | 1 |
 | 12G SDI Cable by Mutiny - 18" to 24" | 1 |
 | HDMI Cable - 1' to 2' | 1 |
| Hot Shoe Mount Adapter | 1 |
 | SmallRig Rosette Articulating Arm - 7" | 1 |
| Video I/O | 1x HDMI 1.4b Input 1x 3G-SDI Loop Output |
| Latency | 0.1 ms |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) Up to UHD 4K SDI (10-Bit 4:2:2 RGB, YCC) Up to 1080p |
| Power Consumption | 9 W |
