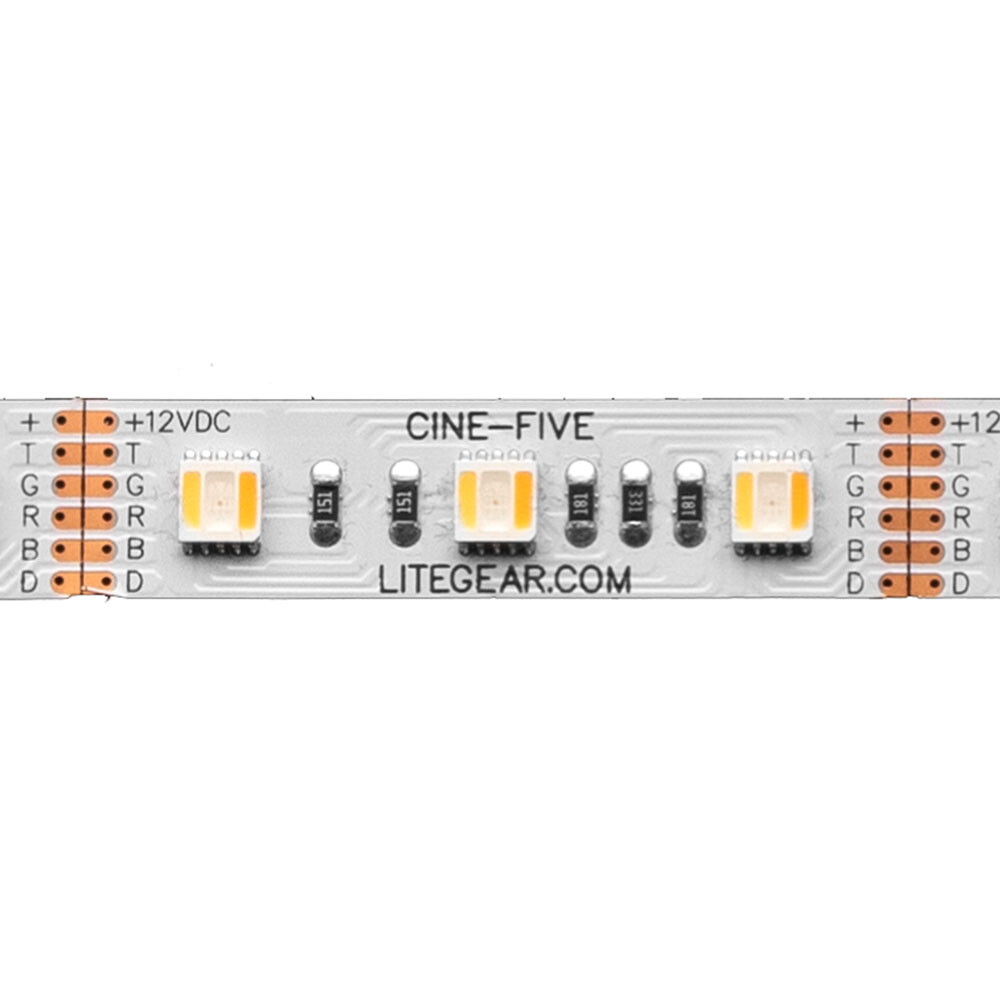

LiteRibbon Chroma, Cine-Five, RGB+HY, 12V, 5 m
Cine-Five is the latest addition to the LiteRibbon Chroma family
which already features multiple RGB ribbon variations. The new
revolutionary Cine-Five features cinema-quality 95+ CRI hybrid with
the ability to add in crisp RGB color accents. While Cine- Five is
technically part of the Chroma family, at its core, it’s
essentially LiteGear’s truly most adjustable Hybrid LiteRibbon.
Each variation of Cine-Five is available in 12V and 24V versions.
Specifications
Vendor: LiteGear
Power: 120W (total potential power per 5 meter roll) Voltage Input:
12 VDC nominal (8-13.5 VDC constant voltage) Current: 10A (total
potential current per 5 meter roll) CCT: Hybrid 2600K (+/-300K),
6000K (+/-300K) CRI ra: 95+ (Tungsten), 95+ (Daylite) TLCI: 96.2
(Tungsten), 98 (Daylite) Beam Angle: 120° Lumens (lm) Whites: 320.6
(Tungsten), 360.7 (Daylite) Lumens (lm) Colors: 141.0 (Red), 299.4
(Green), 65.1 (Blue) Color Space Compliant: Yes (with appropriate
controller) Green/Magenta: Yes (with appropriate controller)
Weight: 0.29 lb. (131.5 g) per 5 meter roll, including wire lead
PCB Width: 12 mm (0.47 in.) Ribbon Overall Thickness: 2 mm (0.08
in.) Max Length: 5 m (16.4 ft) Cut Segment Length: 50 mm (1.96 in.)
Cut Segments per Meter: 20 Total LED Quantity: 300 LEDs per Meter:
60 LEDs per Cut Segment: 3 LED Spacing: 16.5 mm (0.65 in.) Center
to Center Dimming Range: 0-100% Operating Temperature: -10°C to
+50°C (14°F to +122°F) Connector: Bare Wire Mounting: Adhesive
backing LED Lifetime: 50,000 Hrs IP Rating: 20
