Matthews MAX Menace Arm Kit
Be sure to watch the How-To
Video by Matthews Studio Equipment.
MAX will support lighting fixtures up to 175 pounds (80kg) allowing you to place almost any lighting almost anywhere on set - back lights, over set walls and in places where lifts are restricted such as roof tops, balconies, etc. MAX will support a 75lb (34kg) light fixture up to 17.5ft (533cm) on the horizontal and over 20ft (609cm) in elevation. MAX's horizontal plane can be adjusted from 7-10ft (213-305cm) and at an extension of 8ft (244cm) has a capacity of 175lbs (80kg). MAX can be counterbalanced with either shot or sand bags and by using standard weight plates MAX can be moved around easily on flat, level surfaces.
MAX will support lighting fixtures up to 175 pounds (80kg) allowing you to place almost any lighting almost anywhere on set - back lights, over set walls and in places where lifts are restricted such as roof tops, balconies, etc. MAX will support a 75lb (34kg) light fixture up to 17.5ft (533cm) on the horizontal and over 20ft (609cm) in elevation. MAX's horizontal plane can be adjusted from 7-10ft (213-305cm) and at an extension of 8ft (244cm) has a capacity of 175lbs (80kg). MAX can be counterbalanced with either shot or sand bags and by using standard weight plates MAX can be moved around easily on flat, level surfaces.
Included in this package
| Qty | ||
|
Matthews MAX Menace Arm | 1 |
|
|

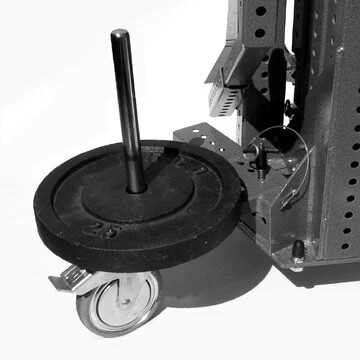

Matthews MAX Menace Arm Leg w/ Wheel | 2 |
|
|
Matthews MAX Menace Arm Angled Extension | 1 |
|
|
Matthews MAX Menace Arm Leveling Head w/ Baby Pin & Junior Receiver | 1 |
|
Weights - 25 lb | 8 |
Specifications
Vendor: Matthews Studio Equipment
Weight: 215lbs (98kg)
- MAX can be positioned flush against a wall, into or around a corner.
- MAX works below the horizontal thus eliminating the need for scaffolding.
- MAX can be positioned parallel up to a 10' (305cm) ceiling.
- 16' (487cm) extension without adapter. 17.5' (533cm) extension with adapter.
- Self-leveling head with Baby Pin and Junior Receiver.
- Fast and easy setup or tear down.
- Easily movable at full extension on level surfaces.
- Angles are adjustable with light fixture attached.
- Use for lights, flags, frames, branch holders or even cameras. 3:1 weight ratio
