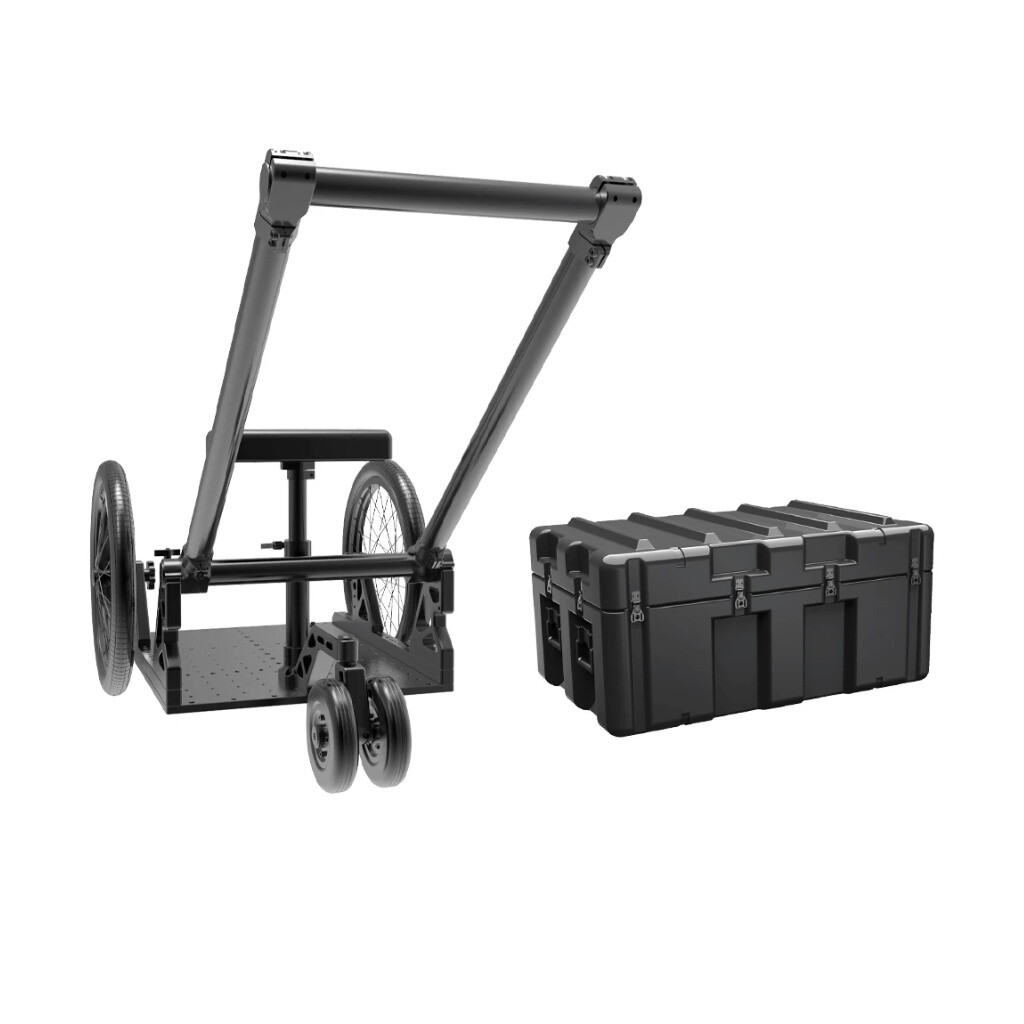

Raptor Rickshaw 3
The Raptor Rickshaw 3 can be used like any other dolly, but it's
also fully customizable. From changing the wheels, to rigging your
camera, gimbal or stabilizer, the Raptor Rickshaw 3 makes it quick
and easy. Designed with low and high wheel mounting options, the
Raptor Rickshaw features ground clearance at 3 1/2" or 5 1/2". This
allows you to adapt the height of a dolly corresponding to the
inclination of the road.
Check the demo video here: Raptor Rickshaw 3 Demo
All tube is 1 1/2".
Included in this package
| Qty | ||
|
Cheese Plate 24" x 30" x 3/8"
This cheese plate is made of 3/8" thick aluminum with 3/8" holes throughout. Hole spacing is 1". |
1 |
|
Pipe 1 1/2" Black - Assorted Lengths | 10 |
|
3rd Wheel Setup - Caster | 1 |
|
|
Spoke Wheel | 2 |
|
|
Fat Wheel | 2 |
|
Mitchell Mount Extension Kit | 1 |
|
Mitchell Mount | 1 |
|
|
Dual Arm Mounting Bracket w/ 4 Half Burgers | 1 |
|
Seat Back | 1 |
|
|
Seat | 1 |
|
|
Seat Riser | 1 |
|
|
Floor Flange 1-1/2" Pipe | 3 |
|
|
Coupling 1-1/2" Pipe | 2 |
|
|
Tee 1 1/2" Pipe | 6 |
|
|
Dual Swivel Clamps 1-1/2" | 4 |
|
2 Inch Spacer | 1 |
|
Allen Wrench | 2 |
|
|
Wrench | 1 |
|
|
Raptor Rickshaw Bolts Bag | 1 |
|
|
Instruction Booklet | 1 |
Specifications
Vendor: Custom Easy
| Case Dimensions | 43" x 27" x 20"H |
| Length | 63" with Handle Titled 45 Degrees |
| Width with Spoke Wheels | 29.5" |
| Width with Fat Wheels | 39.4" |
| Height | 35.4" with Handle Titled 45 Degrees |
| Ground Clearance (Min – Max) | 3.5" – 5.5" |
| Seat Height (Min – Max) | 15.3" – 25.2" |
| Cheese plate | 29" x 32" |
| Caster Wheel Diameter | 8" |
| Spoke Wheel Diameter | 21" |
| Fat Wheel Diameter | 8" |
| Maximum Payload | 330lbs |
